Layer8

Graffiti for the internet. Layer8 is a Chrome extension that lets you draw, spray, and tag any webpage. Other Layer8 users see your art when they visit the same page. The web is your wall.

• Website: layer8.art
• GitHub: nateblaine/layer8
• Status: In progress

How It Works

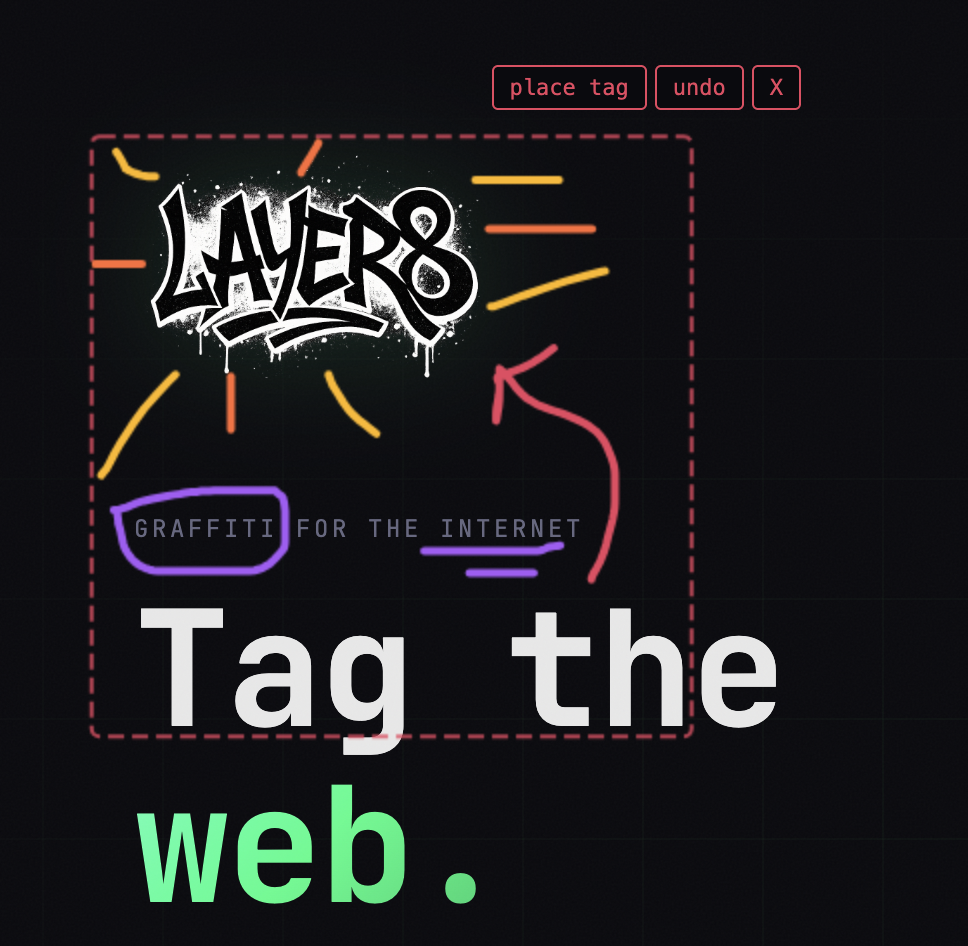

When you activate the extension, an HTML5 Canvas overlay sits on top of the current page. You draw freely — lines, shapes, scribbles — and when you're happy, you place it as a tag.

A tag is a complete drawing saved to the backend keyed by the page URL. Under the hood, a tag is made up of individual strokes, each stored separately in the database. This lets the backend reconstruct the full drawing stroke-by-stroke rather than storing a flat image.

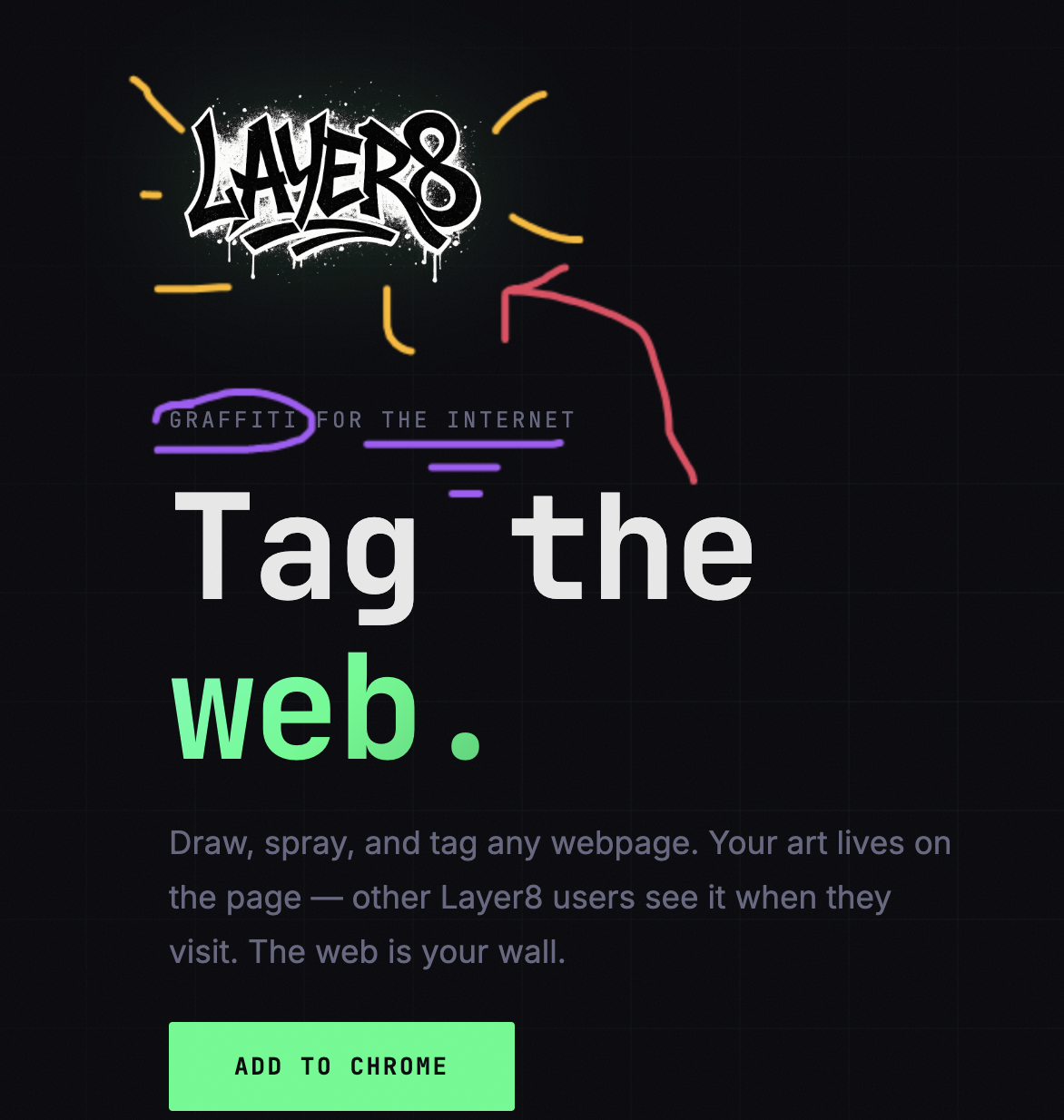

When another user loads the page, the extension calls the backend to fetch all tags for that URL and renders them onto the canvas.

Tech Stack

Layer	Tech
Extension	TypeScript, React, HTML5 Canvas
Backend	Express.js on AWS Lambda
Database	PostgreSQL via Neon
Auth	Clerk
Infrastructure	AWS CDK
Monorepo	Turborepo

The backend is the part I'm most happy with. Neon gives you serverless Postgres with no always-on cost. Clerk handles auth with minimal surface area — integrating it with a Chrome extension is non-standard (no server-side session), but their browser SDK works well in the extension context.

Challenges

The canvas overlay was trickier than expected. Getting a full-page canvas to sit on top of arbitrary websites without breaking scroll, click handling, or existing CSS stacking contexts requires careful pointer-events management and z-index discipline. Some pages fight back.

The sync model took a few iterations. The instinct is to reach for WebSockets, but for a Chrome extension backed by Lambda, maintaining persistent connections isn't practical. Page-load fetching is simpler and covers the vast majority of the use case.
